The machine use to produce non-woven material shoe cover,good quality,low price,high output advantages,can completely replace manual shoe cover,save labor,reduce costs,can becustomized according to customer requirements
Non-woven shoe cover machine: (speed: 120-160pcs/min)
Sample:
Performance and characteristics:
1.The machine use to produce non-woven material shoe cover, good quality, low price,
high output advantages, can completely replace manual shoe cover, save labor, reduce costs,
can becustomized according to customer requirements, this machine is automated.
2.Automation of the whole process from feeding raw materials to layered products to counting products.
With computer control and automatic tension control, hot hand electric welding can be debugged,
both ends of shoe sleeve and rubber band can be effectively fixed, and the whole process from
raw materials to finished products can be automated. Only one person is needed in the whole
process of operation.
3. Frequency conversion speed regulation.
4. Delivery is the finished product.
5. Automatic constant temperature control.
6. Hot hand electric welding can be debugged.
Production process:
Automatic feeding-importing-folding-connecting-cutting
Technical Data：
| Suitable material | Non-woven |
| Machine size | 1900mm*1800mm*1600mm(L*W*H) |
| Package size | 1900mm*1800mm*1600mm(L*W*H) |
| Capacity | 120-160 Pcs/min |
| voltage | 220v/380v (according to customer requirement) |
| Weight | Machine weight：750kg ；Packing weight：800kg |
| power | 3.8kw |
| Finished products size | 400*160mm（L*W） other size make according to customer requirement |
| Material Feeding | Rubber band，Non-woven |
Main configuration：
| Name | Note | Quantity | Brand |
| Edge corrector | Feeding device | 1 | China |
| Mechanical shaft | Feeding shaft | 1 | China |
| ultrasonic |
|
4 | China |
| Hemming device | Post-position | 2 | China |
| Rubber band device |
|
2 | China |
| Triangular hem |
|
1 | China |
| Traction roller |
|
1 | China |
| Strengthened ironing device |
|
1 | China |
| Side sealing device |
|
1 | China |
| cutter | Roller type | 1 | China |
| Magnetic powder controller | 2.5KG | 1 | China |
| Gear box motor | 1.5KW |
1 |
China |
| Frequency converter | Delta 1.5KW | 1 | Taiwan |
| electrical equipment | Schneider & Chint |
|
France & China |
| Body | Alu alloy |
|
China |
Machine pictures: we produce 20sets machine per month. We can deliver machine within 2days.

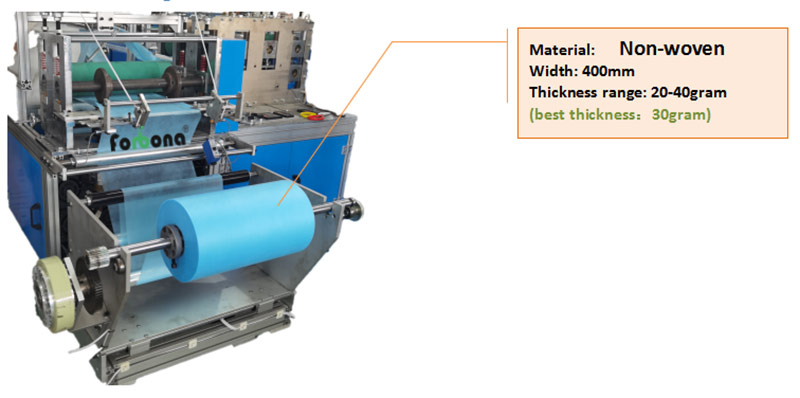

Material feeding:

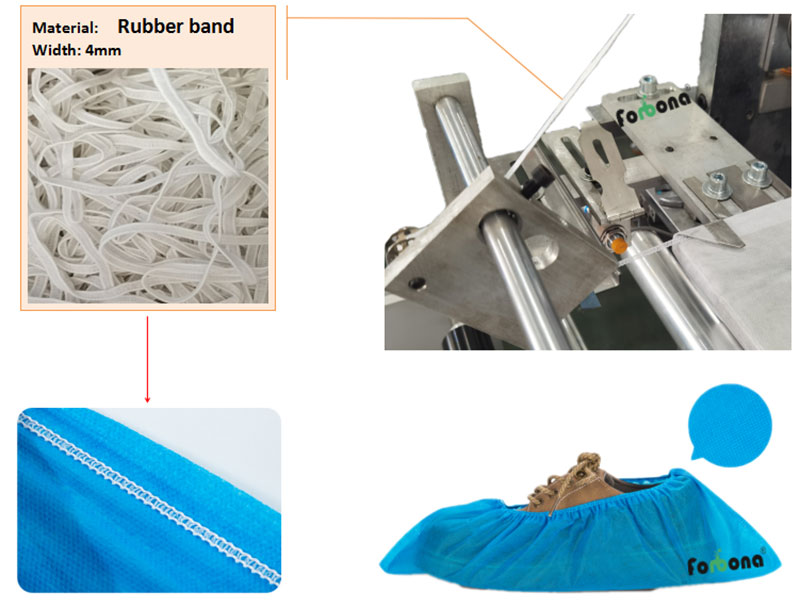

Feeding rubber band： welding by ultrasonic：

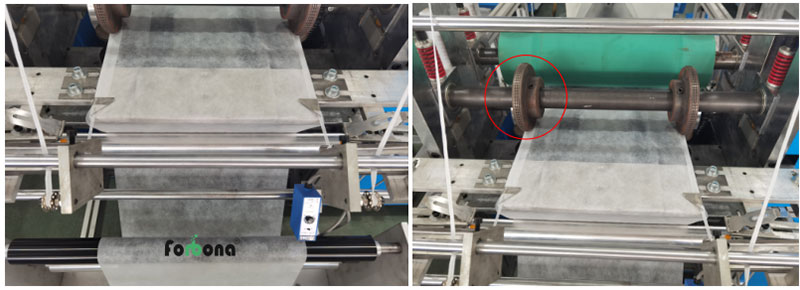

Folding the non-woven： After folded：
Side sealing by ultrasonic： Another side sealing by ultrasonic：
TATALLY FOUR SETS ULTRASONIC SET ON THE MACHINE.

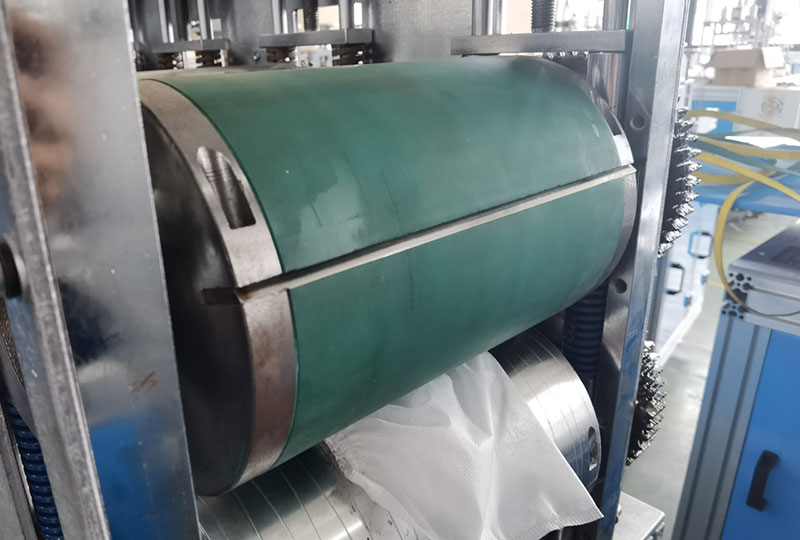

Cutter：
Finished products comes out：
Control plate：easy to operate.
Our company:
Certificate:
Quotation：
1.FOB Ningbo port
2.Payment：50% deposit，and pay the balance before shipment by TT.
3.Delivery time：2 days （check with us）
4.Warranty: 1 year. But paid service for lifetime.(during the warranty period,maintain and change the spare parts for the customers for free,except for the damage caused by human factors. And except for wearing/vulnerable parts.)
5.Installation: If the customer need us to send engineer to his factory for install and test the machine and training workers operation, the customer need to bear his go and return tickets and eating and lodging in his country.And the customer should pay for the visa, the engineer salary is 100 USD/day.
